Servo motors and drives

Brochuers and data leaflets

	ECMA and ASDA-B2 servo motors and drives (sv)	2.22 MB
	TGT servo motors (sv)	3.80 MB

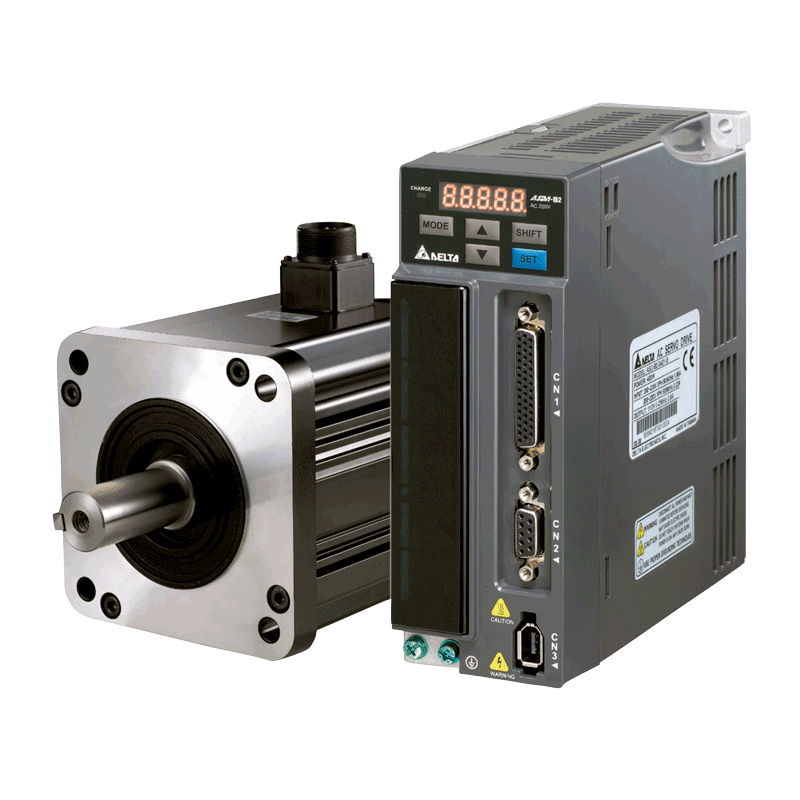

ECMA and ASDA-B2 servo motors and drives

Permanent magnet synchronous motors (PMSM) with incremental  encoder serial interface encoder (17 bits, resolution 160,000 increments / revolutions). The motors have small outer dimensions and low moment of inertia, which gives high dynamic performance.

The power sizes 0.75 - 3 kW are equipped with a built-in brake resistor. For smaller power sizes, an external brake resistor can be connected. These servo drives provide accurate speed control, torque control and positioning (synchronization with external pulse train). They are well suited for demanding servo applications together with PLC systems and HMI terminals. ASDA-B2 can handle serial communication via MODBUS already in the basic version. Commissioning and programming are facilitated by powerful PC software (ASDA soft) which, among other things, offers real-time oscilloscope function (sampling time 0.5 ms). ASDA-soft can be downloaded free of charge from the manufacturer DELTA's website. It is also possible to program the servo amplifier using the operator panel and manual. The operator panel also provides the possibility of reading the operating data and any alarms.
